ZF 102- Dişlili| Akış Asansör Motorları

Z-ZF SERİSİ

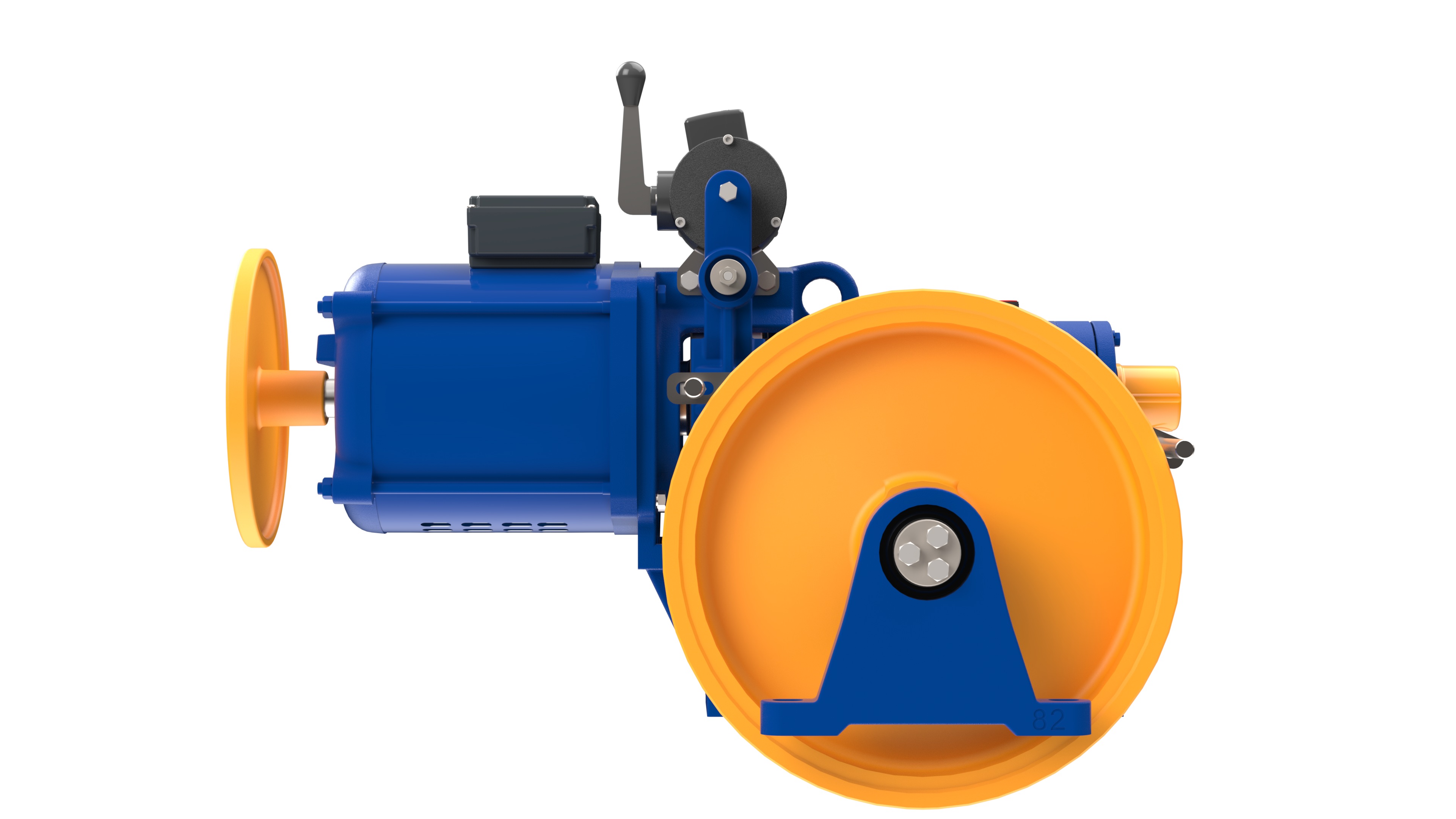

ZF 102

Ürün Grubu Z-ZF SERİSİ

Roping Type 1:1		Travel Distance 51 Meter			Static Load 4500 kg		240St/h
Ürün	Hız	Kapasite	Güç	Kasnak	Akım	Tahvil Oranı	Seyir Mesafesi	Makine Ağırlığı
Product	Speed	Duty Load	Power	Sheave	Current	Ratio	Travel Distance	Machine Weight
	[m/s]	[kg]		[mm]	[A]		[m]	[kg]
ZF102	1,00	1000	7,5 kW	500x6x10	16,5	39/1	51	335
		1125	9,0 kW	500x6x10	20,5			345
		1440	11,0 kW	500x7x10	24,0			365
		1500	15,0 kW	500x7x10	31,0			370
	1,20	600	5,5 kW	620x5x10	13,0			345
		800	7,5 kW	620x6x10	16,5			350
		960	9,0 kW		20,5			360
		1125	11,0 kW		24,0			375
		1400	15,0 Kw		31,0			385
	1,60	500	5,5 kW	500x5x10	13,0	49/2		345
		680	7,5 kW		16,5			350
		800	9,0 kW		20,5			345
		1000	11,0 kW	500x6x10	24,0			365
		1300	15,0 kW	500x6x10	31,0			370
	2,00	400	5,5 kW	620x4x10	13,0			345
		550	7,5 kW	620x5x10	16,5			350
		630	9,0 kW	620x5x10	20,5			360
		800	11,0 kW	620x6x10	24,0			375
		1050	15,0 kW	620x6x10	31,0			385
	2,40	320	5,5 kW	500x4x10	13,0	46/3		320
		400	7,5 kW	500x5x10	16,5			335
		525	9,0 kW		20,5			345
		640	11,0 kW		24,0			365
		880	15,0 kW	500x6x10	31,0			370
	3,20	320	7,5 kW	620x4x10	16,5			350
		450	9,0 kW	620x4x10	20,5			360
		525	11,0 kW	620x5x10	24,0			375
		720	15,0 kW	620x5x10	31,0			385

Ürün Product	Güç Power [kW]	Hız Speed [m/s]	Kasnak Sheave [mm]	Teknik Çizim Technical Drawing
ZF102	7,5	1,00	500x6x10
ZF102	9	1,00	500x6x10
ZF102	11	1,00	500x7x10
ZF102	15	1,00	500x7x10
ZF102	5,5	1,20	620x5x10
ZF102	7,5	1,20	620x6x10
ZF102	9	1,20	620x6x10
ZF102	11	1,20	620x6x10
ZF102	15	1,20	620x6x10
ZF102	5,5	1,60	500x5x10
ZF102	7,5	1,60	500x5x10
ZF102	9	1,60	500x5x10
ZF102	11	1,60	500x6x10
ZF102	15	1,60	500x6x10
ZF102	5,5	2,00	620x4x10
ZF102	7,5	2,00	620x5x10
ZF102	9	2,00	620x5x10
ZF102	11	2,00	620x6x10
ZF102	15	2,00	620x6x10
ZF102	5,5	2,40	500x4x10
ZF102	7,5	2,40	500x5x10
ZF102	9	2,40	500x5x10
ZF102	11	2,40	500x5x10
ZF102	15	2,40	500x6x10
ZF102	7,5	3,20	620x4x10
ZF102	9	3,20	620x4x10
ZF102	11	3,20	620x5x10
ZF102	15	3,20	620x5x10
